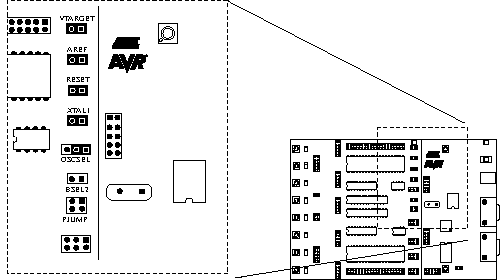

A master MCU and 8 jumpers control the hardware settings of the starter kit. During normal operation these jumpers should be mounted in the default position. To configure the starter kit for advanced use the jumpers can be removed or set to new positions. The jumper settings and usage are explained in the following section. The default setting of the jumpers are shown in the figure below.
| Jumper | Description of default setting |
|---|---|
| VTARGET: | On-board VTARGET supply connected |
| AREF: | On-board Analog Voltage Reference connected |
| RESET: | On-board reset system connected |
| XTAL1: | On-board clock system connected |
| OSCSEL: | On-board oscillator selected |
| BSEL2: | Unmounted. Used for High-Voltage programming of ATmega32, ATmega161 and ATmega163 |
| PJUMP: | Unmounted. Used for High-Voltage programming of AT90S2333 and AT90S4433 |
