Volkswagen 01M Transmission. Manual - part 75



„

Bolt

„

Adjusting

37-2, Adjusting





„

Mounting bracket/cover

„

Can only be removed
downward



„

Lock washer

„

Always replace



„

Selector lever cable

„

Is removed together with
selector mechanism



Item

- 15 -



„

Adjusting

37-2, Adjusting





„

Lock washer

„

Always replace



„

Mounting bracket

„

For selector lever cable on
transmission



„

Bolt, 23 Nm

„

Self-locking

„

Always replace

„

The threaded holes in
transmission for bolts must
always be cleaned. (e.g. with
a thread tap)



Selector lever handle, removing and installing

Removing



To ensure the handle is not damaged adhere to this
sequence:

Page 5 / 26

Selector mechanism, servicing

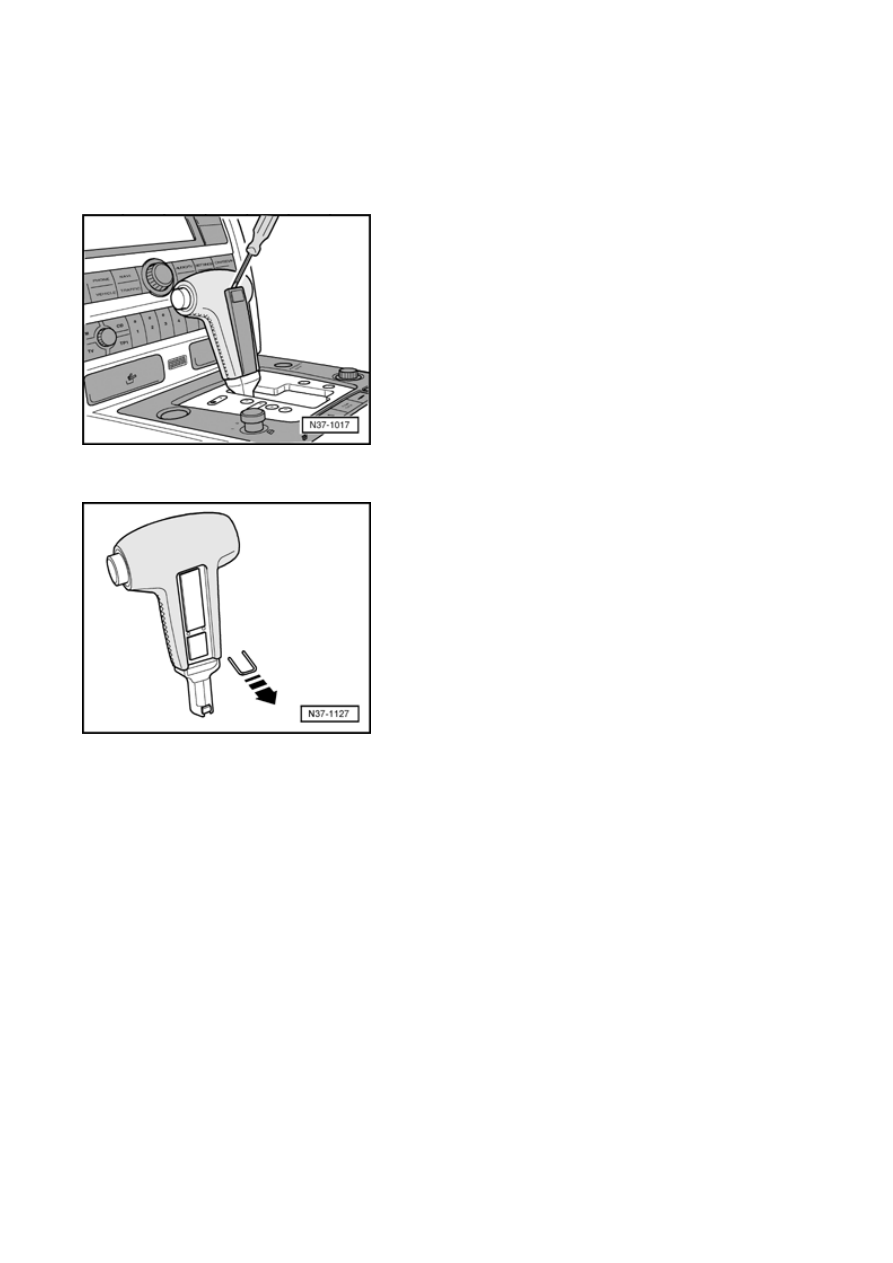

- Pry out selector.

-  Remove bracket from handle.

-  Pull button passed pressure point until it is locked in
position.

- Remove handle from selector lever.

Installing



If the handle is replaced, do not remove the assembly aid
from the new handle under any circumstances!

If the button is inadvertently pressed into the handle, hold
handle vertically and at the bottom (!). Carefully blow
button outwards again using compressed air until it can be
pulled out over the pressure point by hand.

Page 6 / 26

Selector mechanism, servicing





- Re-install assembly aid - A  - (enclosed with new
handle).

-  Push in clip.

-  Press selector into handle again.

-  Place selector lever in position "N" .

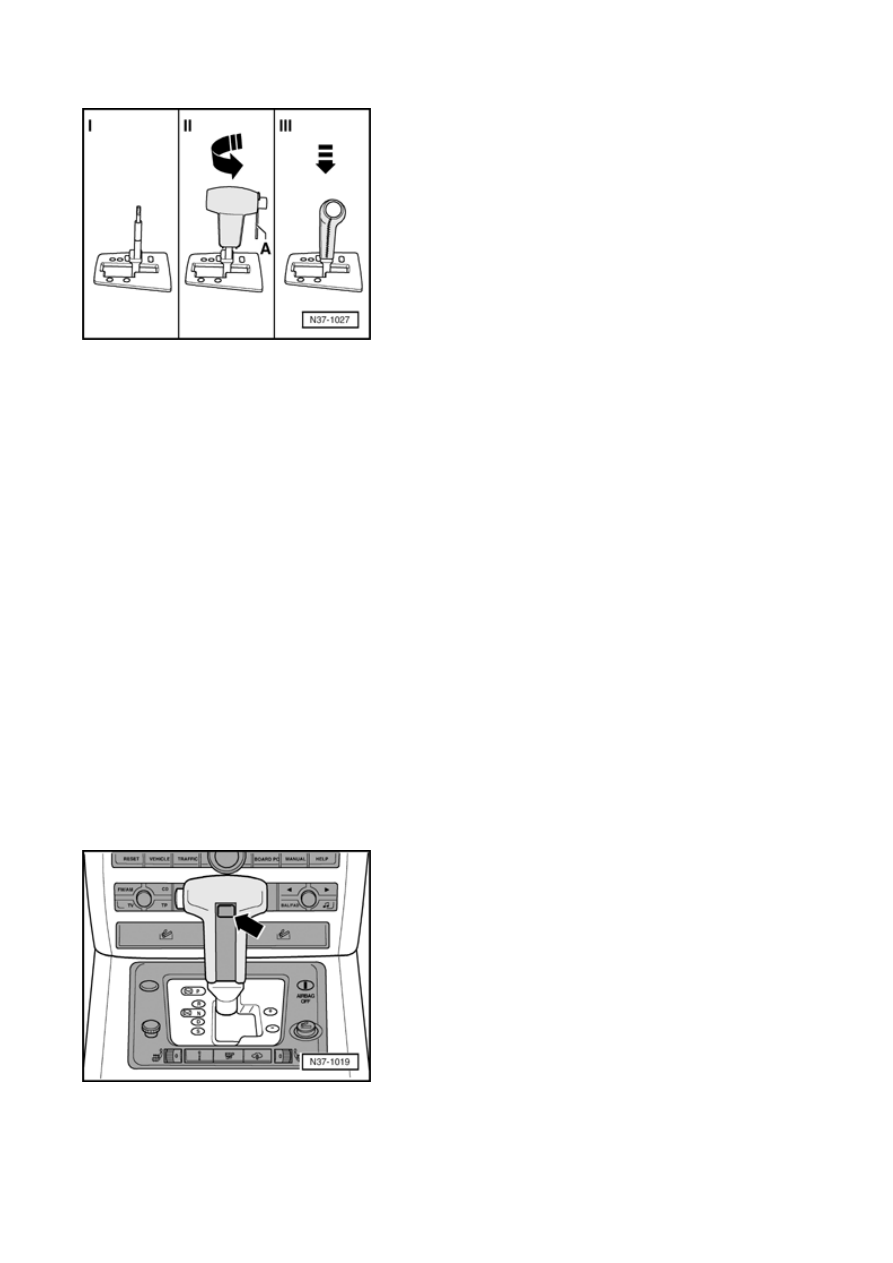

-  I - Guide sleeve carefully through cover strip and cross
slide lying underneath.

-  Make certain that the sleeve is carefully guided through
the cover strip when inserting. If carelessly pushing the
sleeve in, the cover strip will break.

-  II - Install handle lengthwise until stop, then turn.

Installation position: Button facing driver.

-  III - Press handle on selector lever up to stop until it
engages noticeably.

-  Remove assembly aid - A  - , operate switch and remove
sleeve upward.

-  Remove protective foil on adhesive surface and affix
label - arrow  - .

Page 7 / 26

Selector mechanism, servicing







Selector lever cable, checking and adjusting

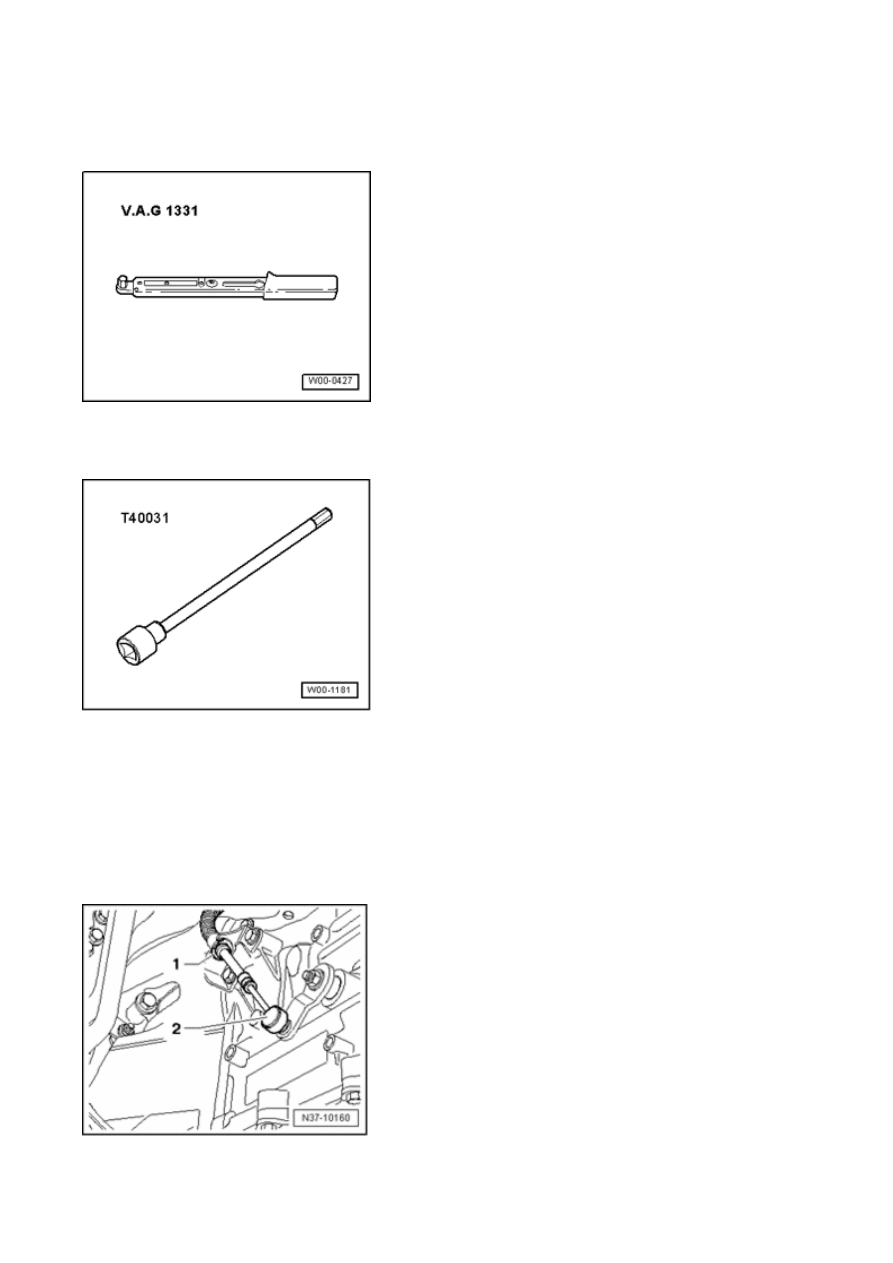

Special tools, testers and auxiliary items required

„

Torque wrench V.A.G 1331



„

Socket and key T40031



Checking



-  Place selector lever in position "P" .

-  Remove noise insulation on bottom of transmission.

-  Pull selector lever cable - 2  - from lever/selector shaft.

Page 8 / 26

Selector mechanism, servicing
