37 - 7





Seals, replacing

Output shaft seal, replacing

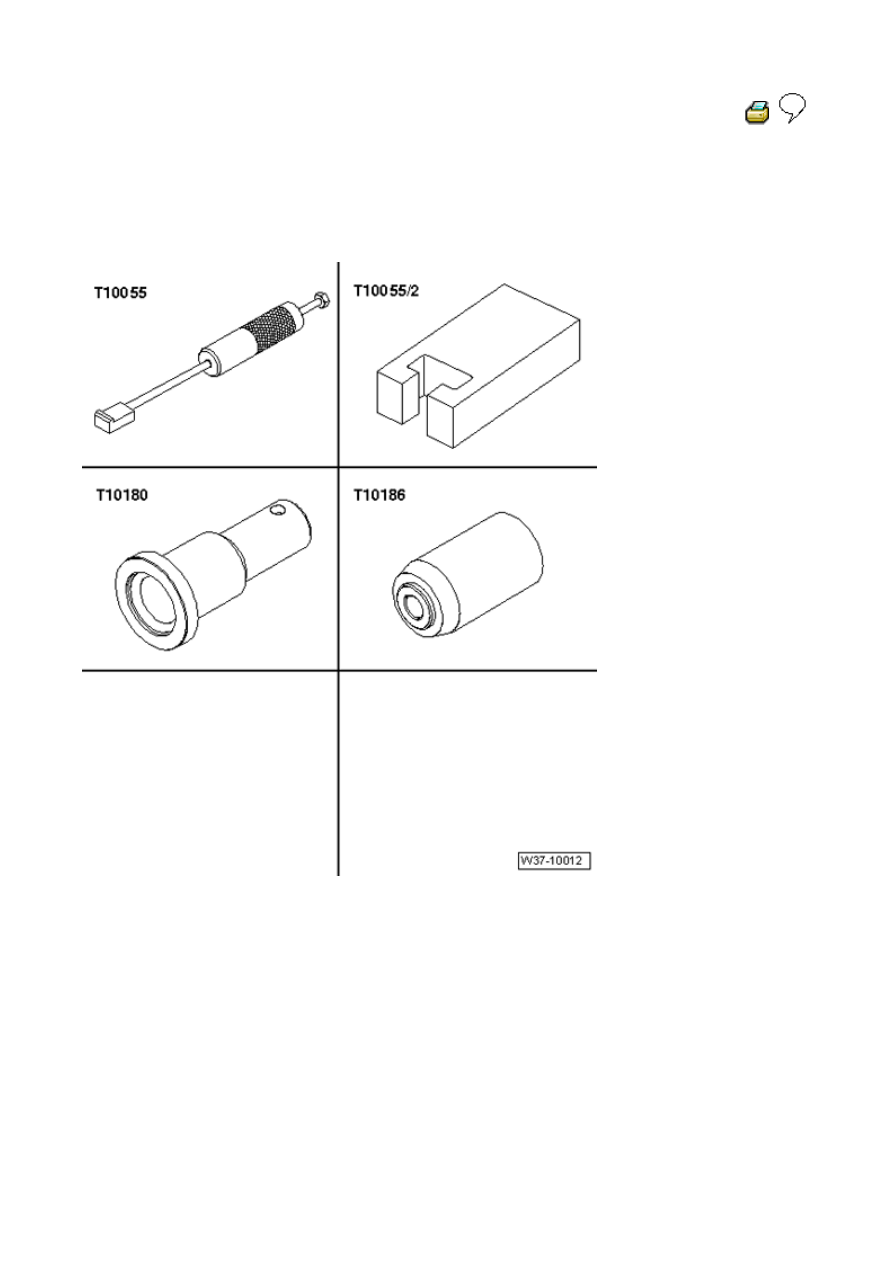

Special tools, testers and auxiliary items
required

„

Puller T10055



„

Adapter T10055/2



„

Press Tool For Shaft Seal
T10180



„

Thrust piece T10186



Page 1 / 4

Seals, replacing





Removing



-  Remove transfer case



37-3, Transmission, removing

and installing

 .

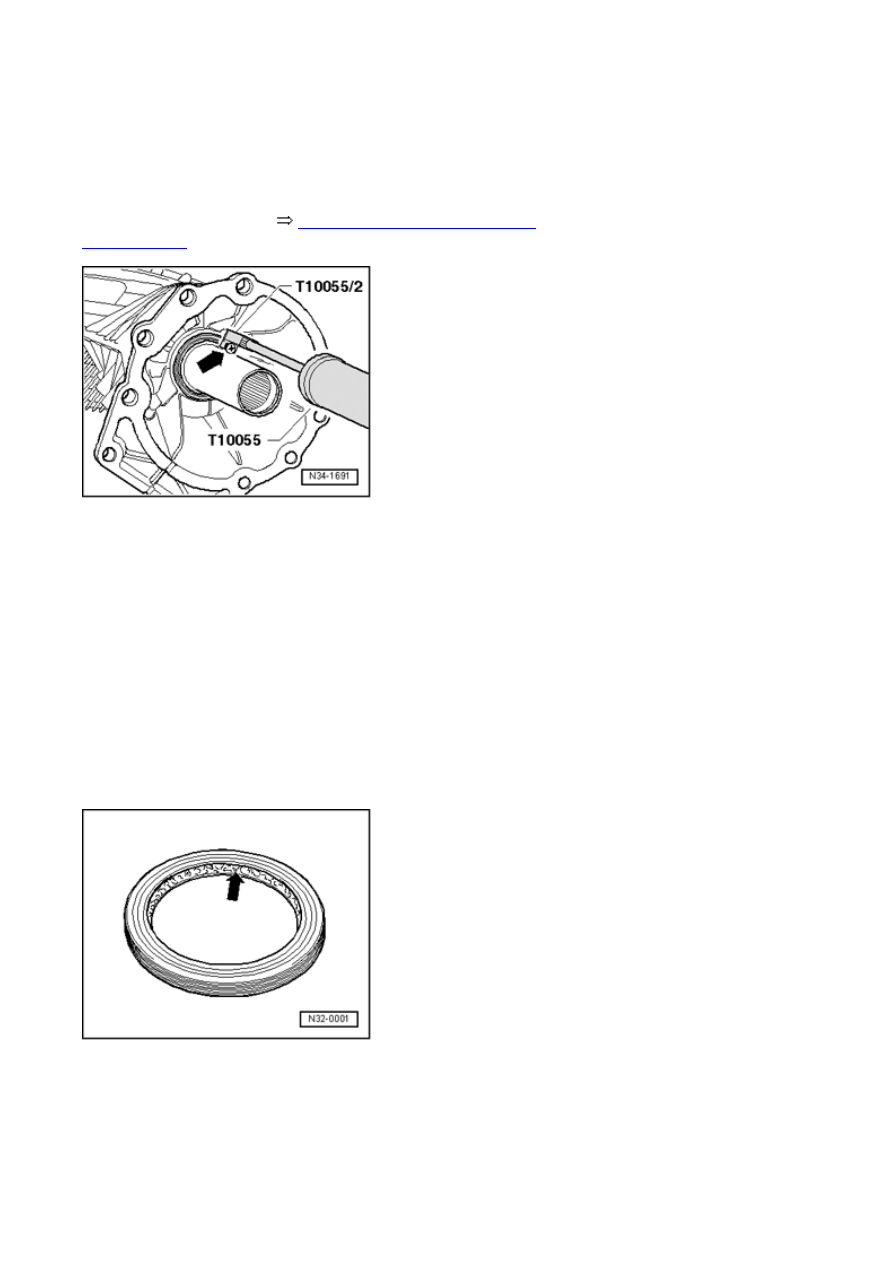

-  To pull out seal, install a sheet metal screw of approx. 4
mm diameter into seal - arrow   -  .

„

Install sheet metal screw in so that it jams between
seal and metal ring.



„

Do not screw in sheet metal screw too far to avoid
damaging bearing behind it.



-  Pull out seal with puller T10055   .

Installing



-  The new seal must be coated with ATF, especially at the
sealing lips.

Page 2 / 4

Seals, replacing

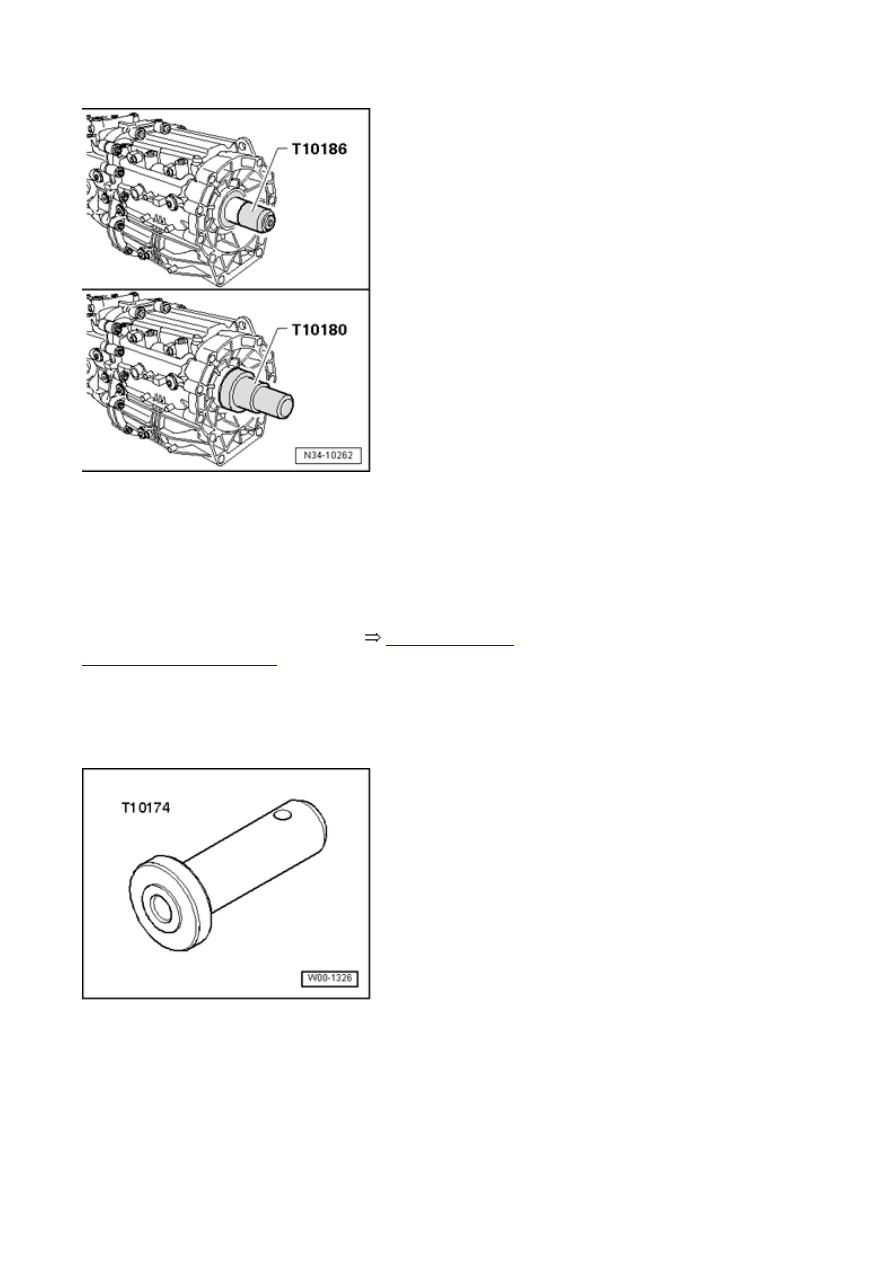

-  First place Press Tool For Shaft Seal T10180   onto
output shaft, so that the seal cannot be damaged.

-  Then, drive in the new seal up to the limit stop using
Press Tool For Shaft Seal T10180   . When doing this, do
not cant sealing ring.

-  Then check ATF level and top off



37-4, ATF level,

checking and topping off

 .

Selector shaft seals, replacing



Special tools, testers and auxiliary items required

„

Thrust piece T10174



„

Scriber



-  Be careful when using scriber to removing seals.

Page 3 / 4

Seals, replacing

-  Apply ATF to circumference and space between sealing
lips of the new seal.

Installation position:

The open side of the sealing ring faces transmission.

-  Drive in new seals using thrust piece T10174   , thereby
not distorting the seal.

- Multi-function transmission range (TR) switch, installing
and adjusting



38-5, Multi-Function Transmission Range

(TR) Switch F125 , removing, installing and adjusting

 .

Page 4 / 4
