Volkswagen 01M Transmission. Manual - part 77





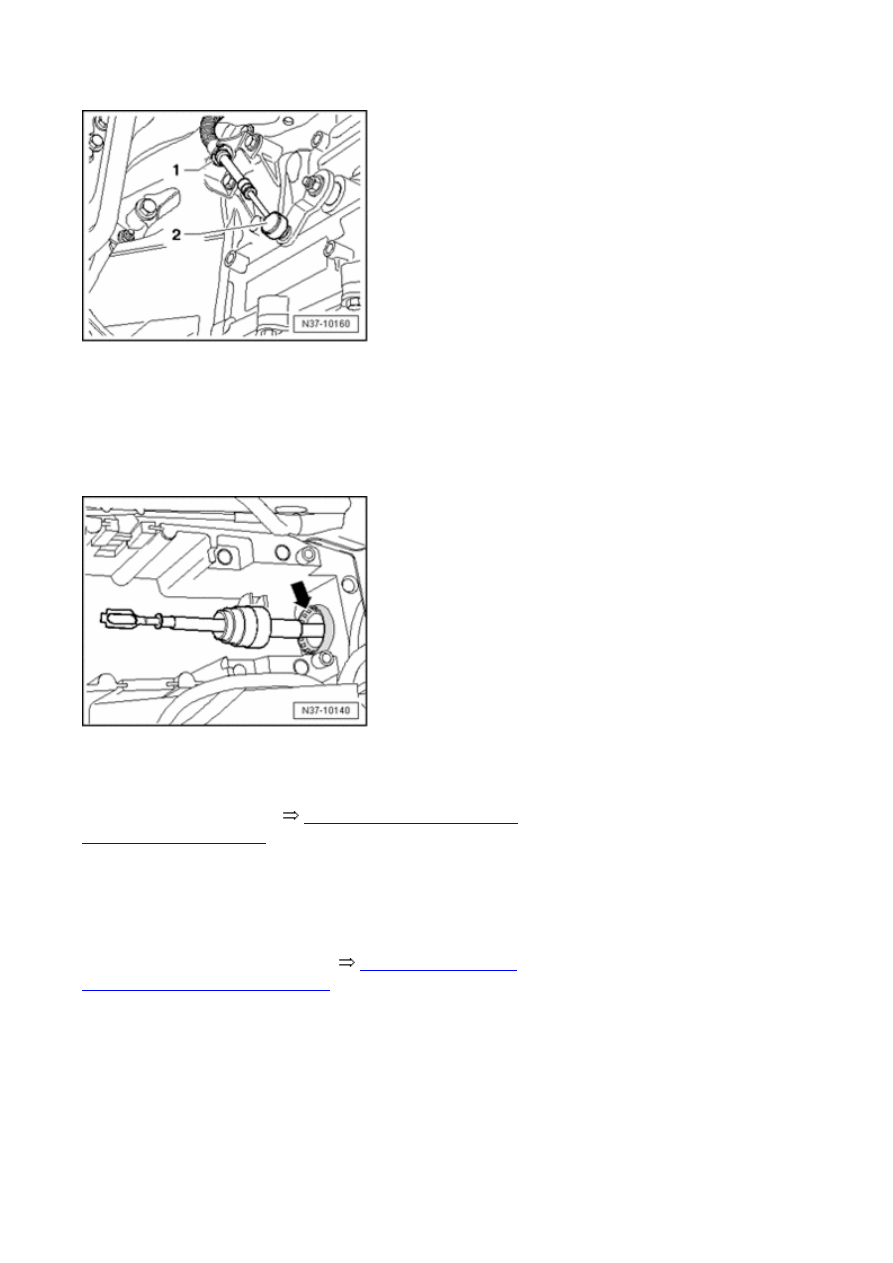

-  Carefully press selector lever cable - 2  - onto selector
shaft lever. Do not bend lever/selector shaft when doing
this, otherwise shifting can no longer be adjusted
precisely.

- Replace lock washer - 1   -  .

- Seat boot - arrow  - so that it makes full contact against
shift unit.

- Install shift mechanism

37-2, Selector mechanism,

removing and installing

 .

Cover, removing and installing

Removing



-  Remove selector lever handle



37-2, Selector lever

handle, removing and installing

 .

-  The procedure for disconnecting the battery must
absolutely be obeyed.

- Disconnect battery Ground (GND) strap with ignition
switched off




Page 13 / 26

Selector mechanism, servicing



.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Remove cover from center console




.



Repair Manual, Body Interior, Repair Group 68,

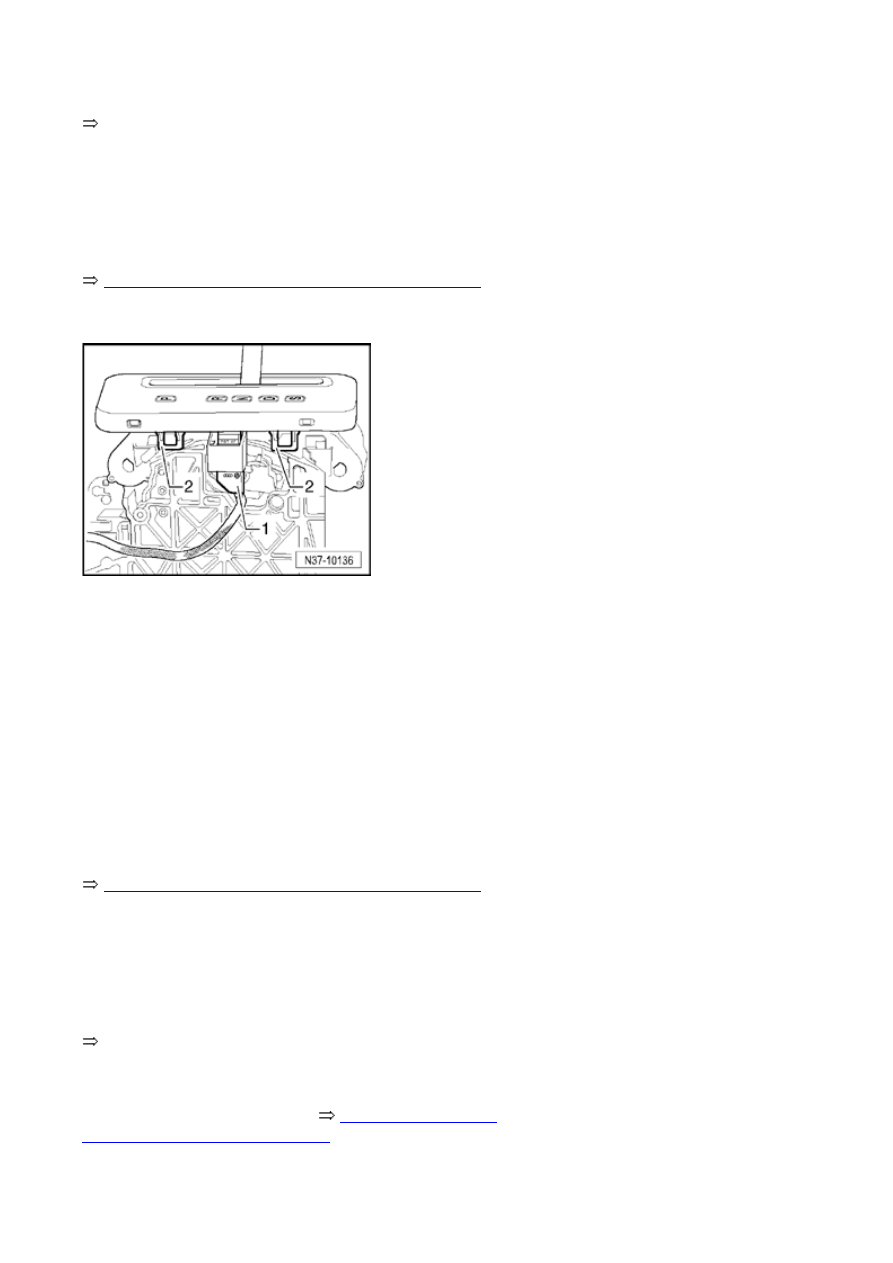

- Disconnect connector - 1  - .

-  Carefully pull off retaining clips - 2  - on left and right from
frame.

Installing



Installation is in reverse order of removal. Note the
following:

-  Install cover to center console




.



Repair Manual, Body Interior, Repair Group 68,

- Connect battery




.

 Repair Manual, Electrical Equipment, Repair Group 27,

-  Install selector lever handle



37-2, Selector lever

handle, removing and installing

 .

Page 14 / 26

Selector mechanism, servicing





Frame, removing and installing



Removing



- Remove cover

37-2, Cover, removing and installing

 .

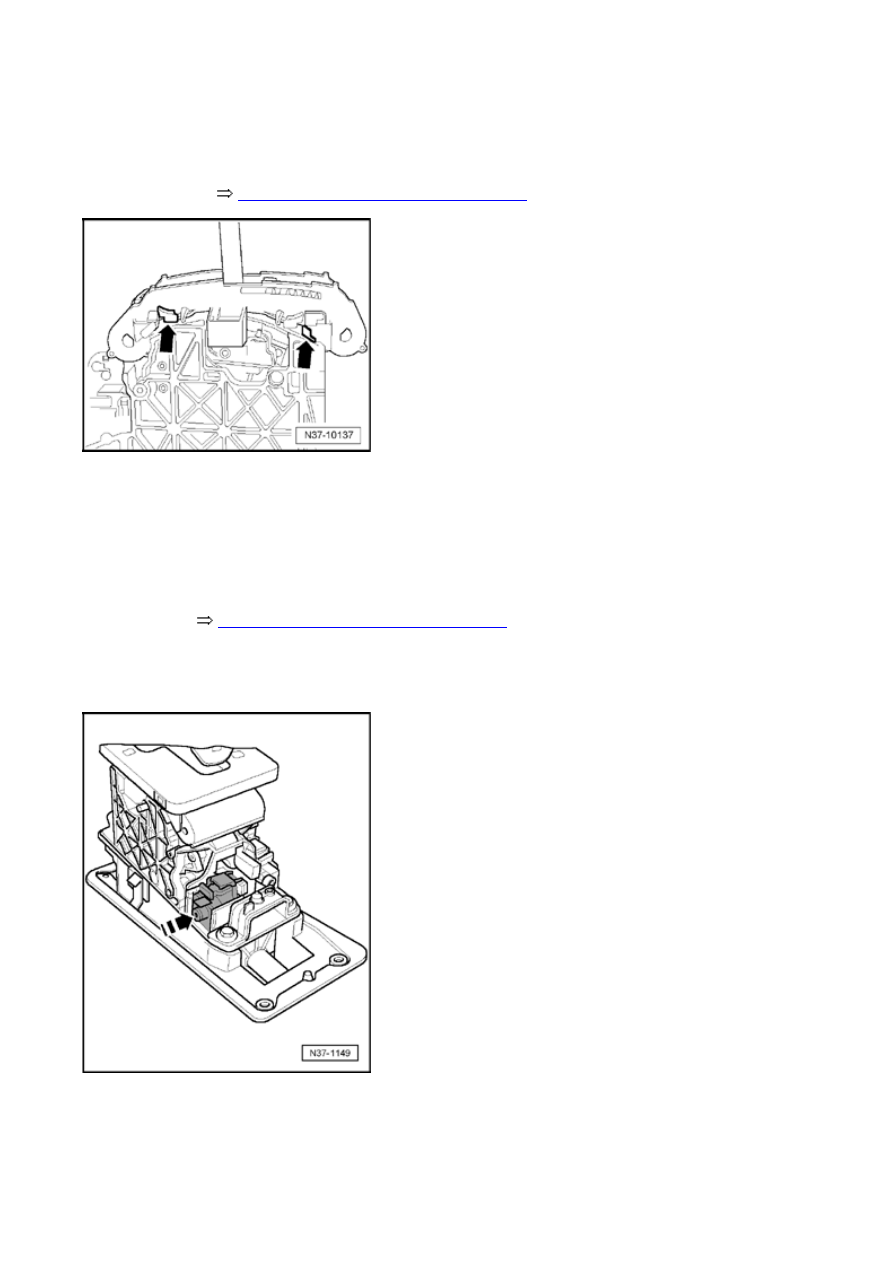

-  Pull retaining clips - arrows  - outward on left and right
and remove frame upward.

Installing



Installation is in reverse order of removal.

- Install cover

37-2, Cover, removing and installing

 .

Shifting selector lever out of "P" without electricity
(Manual release)

-  Press solenoid core in direction of - arrow  - from above
with a "long, thin" screwdriver.

The handle does not need to be removed for this.

Page 15 / 26

Selector mechanism, servicing





Selector lever park position solenoid N380  , removing
and installing

Removing



- Remove shift mechanism

37-2, Selector mechanism,

removing and installing

 .

-  Release connector and pull off.

-  Release solenoid from its mounting and pull it upward
and out from locking lever - 1  - and shift mechanism.

Installing

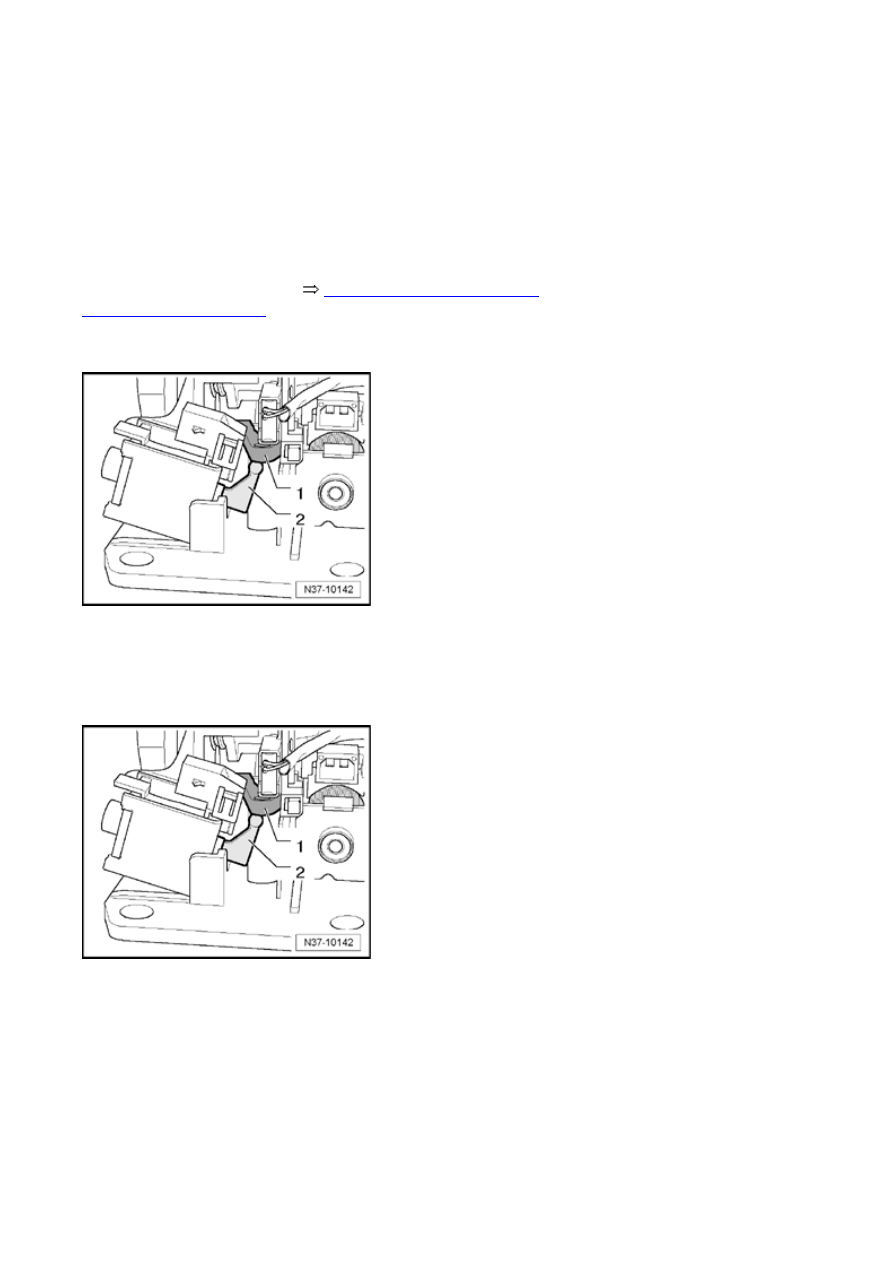

-  Set solenoid lever - 2 - vertically.

-  Set solenoid into mount of shift mechanism at a slight
angle.

- Attach lever - 2  - to locking lever - 1 - .

Page 16 / 26
