Volkswagen 01M Transmission. Manual - part 81





Removing



-  For all engine variations, it is advisable to remove the
"lower connecting bolts" of the engine/transmission, even
before the removal of the gear set.

When possible, the torque converter fasteners should also
be mounted early on.

-  Remove engine with transmission




.

 Repair Manual, Engine Mechanical, Repair Group 10,

Vehicles with V6 and V8 gasoline engines

- Remove starter motor




.

 Repair Manual, Electrical Equipment , Repair Group 27,

-  Remove torque converter from drive plate.

Page 3 / 12

Transmission, removing and installing





Vehicles with V10 TDI

- Remove starter cable so far until bolt - arrow  - can be
removed




.

 Repair Manual, Electrical Equipment, Repair Group 27,

On these models, the torque converter fasteners and the
lower engine/transmission bolts should be installed with the
gear set mounted.

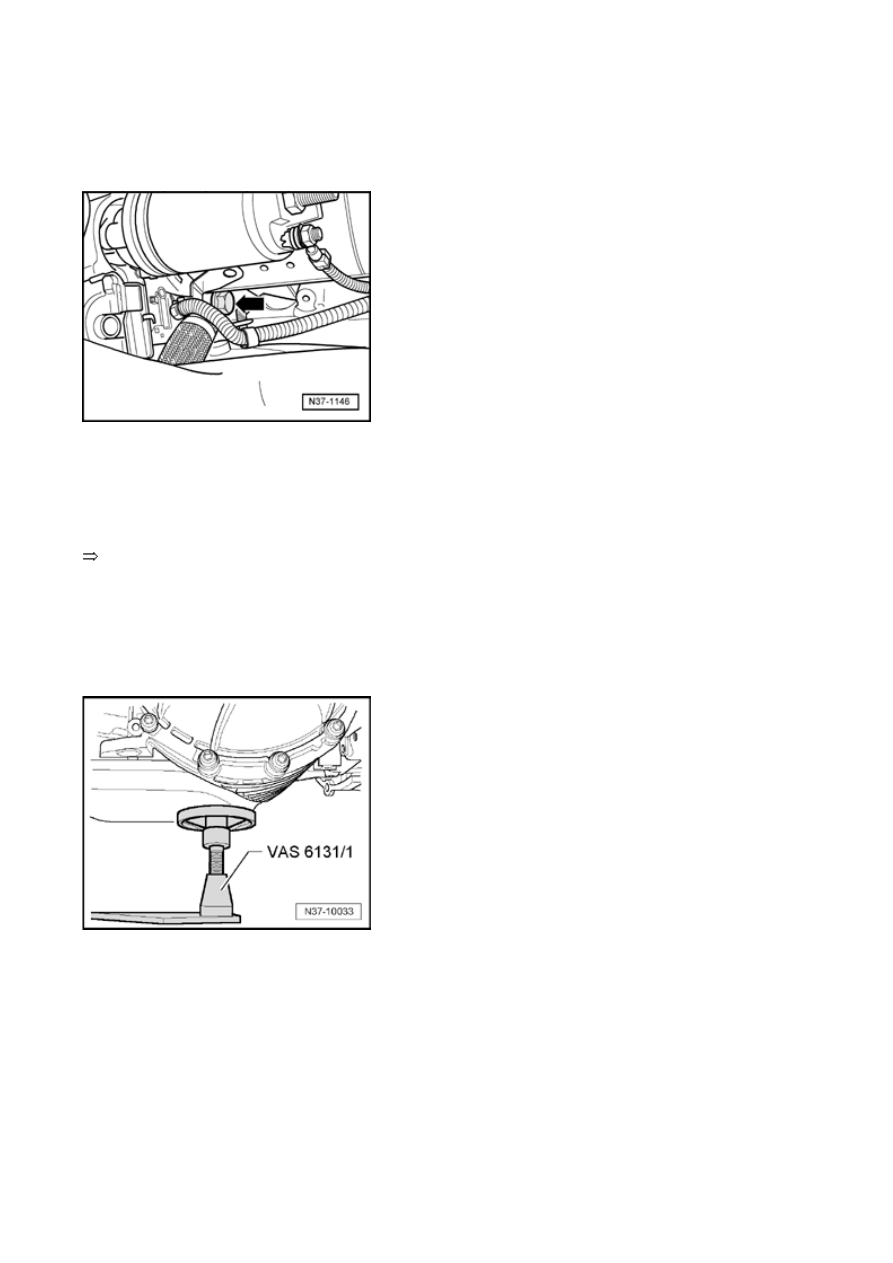

Make sure that at least two plates VAS 6131/1   on the
lifting table are placed under oil pan as support for
automatic transmission.

-  Remove driveshaft between transfer case and front final
drive.

-  To counter-hold the driveshaft, the counter-hold tool
T10172   can be used.

Page 4 / 12

Transmission, removing and installing

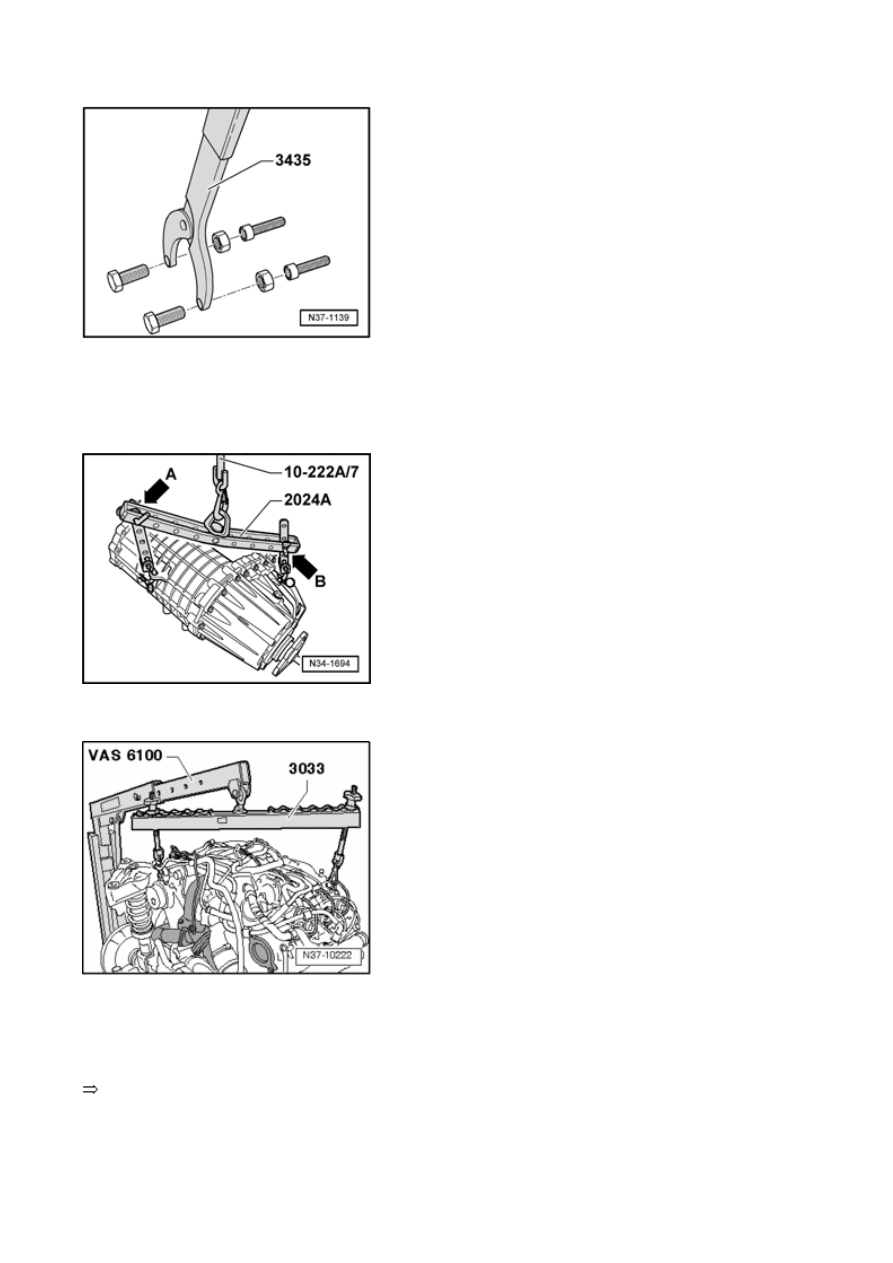

- The counter-holder 3435  with two bolts up to M10 is also
recommended.

or: Retainer T10172

-  Support transfer case with crane.

- Separate transfer case and set aside




.

 Repair Manual, Rear Final Drive, Repair Group 34,

Before engine and transmission are separated from each

Page 5 / 12

Transmission, removing and installing

other, secure engine from tipping over.

-  If a second crane is not available, separate the engine
and transmission and then support the engine with
available materials.

- Support transmission with crane



37-3, Transmission,

transporting

 .

- Loosen ATF lines

37-5, ATF lines and ATF cooler

 .

-  Remove all connecting bolts for engine/transmission.

-  Carefully press transmission off engine.

-  Make sure that the converter is also pressed from drive
plate with transmission.

Installing



Installation is in reverse order of removal.

-  Check adjustment of selector lever cable and adjust if
necessary

37-2, Selector lever cable, checking and

adjusting

 .

After installation, check the ATF level, if necessary top off



37-4, ATF level, checking and topping off

 and check the

vehicle alignment




.

 Repair Manual, Suspension, Wheels, Steering, Repair

Group 44,

Tightening torques, vehicles with V6 gasoline engine



Topic 37-3

 .

Tightening torques, vehicles with V8 FSI gasoline engine
(FSI)

Topic 37-3

 .

Tightening torques, vehicles with V8 gasoline engine (TSI)



Topic 37-3

 .

Tightening torques, vehicles with V10 TDI



Topic 37-3

 .

Torque specifications



Vehicles with V6 gasoline engine

Page 6 / 12

Transmission, removing and installing
