Removing and installing



38-3, Automatic
Transmission Hydraulic
Pressure Sensor 1 G193
and Automatic Transmission
Hydraulic Pressure Sensor 2
G194 , removing and
installing





„

Automatic Transmission
Hydraulic Pressure Sensor 1
G193

„

Removing and installing



38-3, Automatic
Transmission Hydraulic
Pressure Sensor 1 G193
and Automatic Transmission
Hydraulic Pressure Sensor 2
G194 , removing and
installing





„

Solenoid Valve 4 N91

„

Transmission Input Speed (RPM)
Sensor G182

„

Transmission Fluid Temperature
Sensor G93

„

Solenoid Valve 6 N93

„

Solenoid Valve 3 N90

„

Solenoid Valve 5 N92

„

Solenoid Valve 10 N283

„

Solenoid Valve 1 N88

More information on component functions and
troubleshooting component failures can be found in

 Self-study program no. 89K303 6 Spd. Automatic

Transmission 09D All Wheel Drive .

Valve body, removing and installing

- If still installed, remove oil pan



38-1, Oil pan, removing

and installing

 and oil strainer



38-2, ATF strainer,

removing and installing

 .

Page 2 / 4

Valve body, overview







-  Carefully disconnect connectors for Automatic
Transmission Hydraulic Pressure Sensor 1 G193  - 1  - and
Automatic Transmission Hydraulic Pressure Sensor 2
G194  - 2  - .

- Disconnect connector - arrow  - .

-  Carefully release connector and pull off.

Page 3 / 4

Valve body, overview







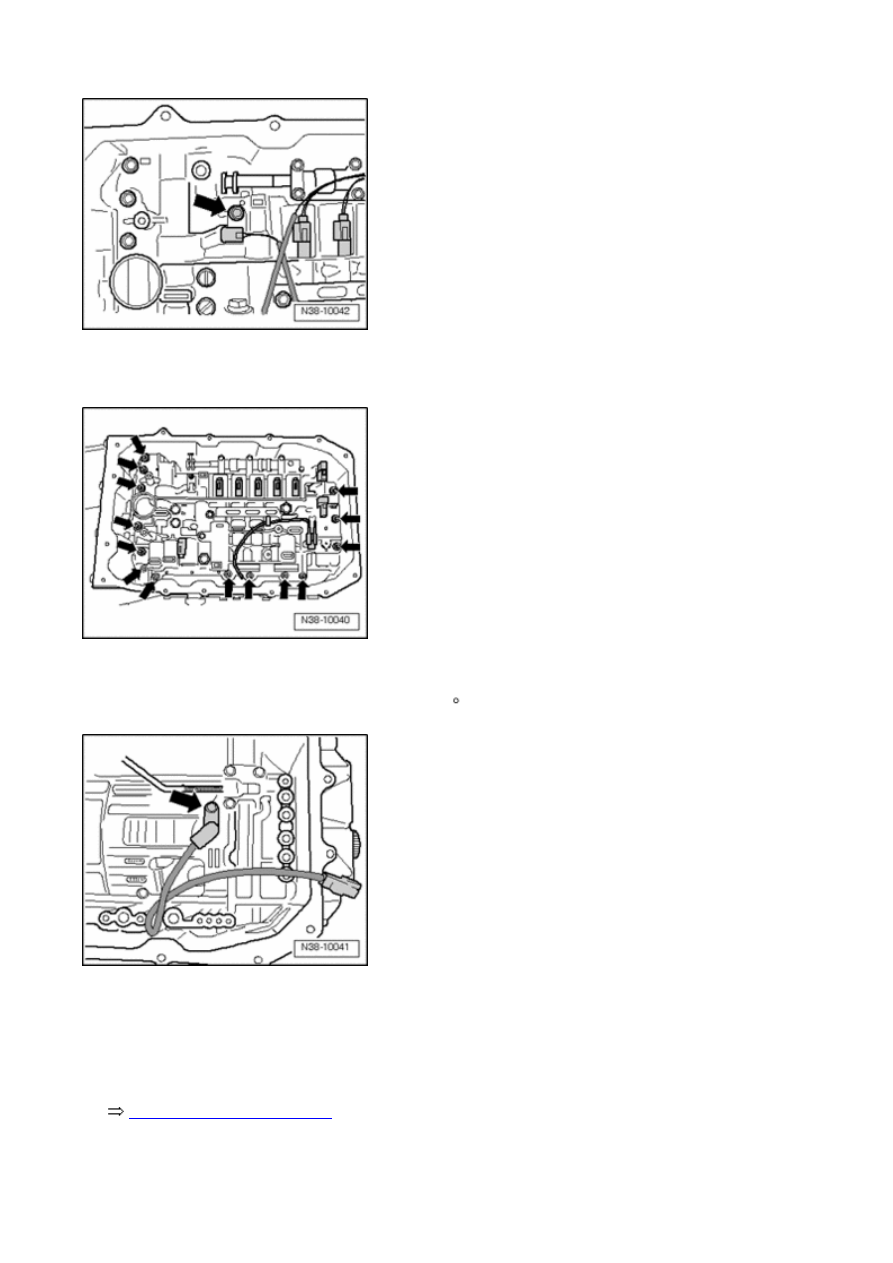

-  The Transmission Fluid Temperature Sensor G93  must
be tightened to 10 Nm.

-  Remove valve body bolts in diagonal sequence.

Tightening torque: 8 Nm plus an additional 90   .

-  The Transmission Output Speed (RPM) Sensor G195
must be tightened to 10 Nm.

-  Installation is in reverse order of removal.

-  After installation, fill with ATF, check ATF level, and top
off

37-4, ATF level, checking

 .

Page 4 / 4

Valve body, overview

38 - 5







Multi-Function Transmission Range (TR) Switch
F125  , removing, installing and adjusting

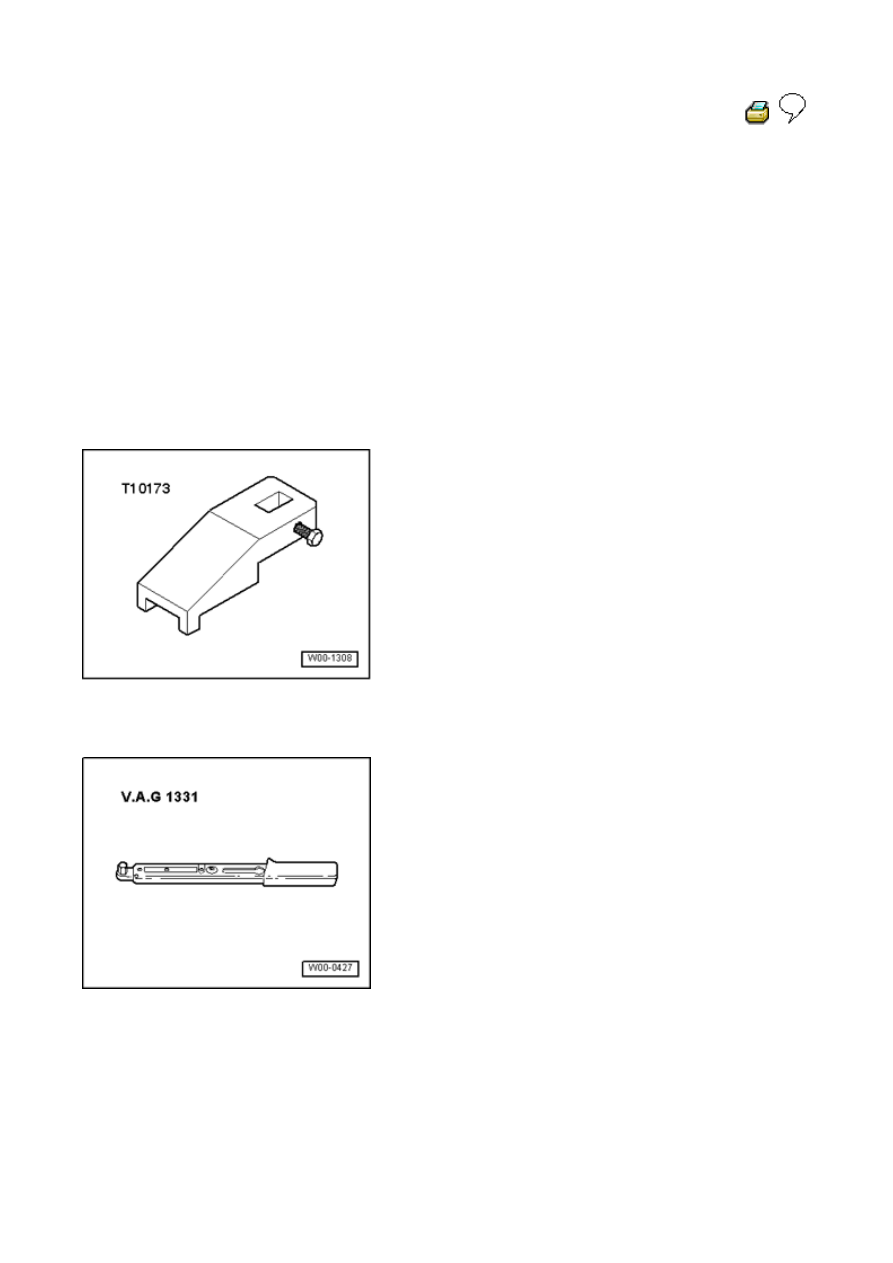

Special tools, testers and auxiliary items required

„

Setting Gauge T10173



„

Torque wrench V.A.G 1331



Removing



For reasons of clarity, the transmission is shown removed
throughout this procedure.

-  Place selector lever in position "P" .

Page 1 / 4

Multi-Function Transmission Range (TR) Switch F125 , removing, installing and adjus...
