When the "Park" position is selected, there is no
powerflow through the transaxle. The parking pawl
is engaged which locks the output shaft to the case.
The engine can be started and the ignition key can be
removed.
P
When the "Neutral" position is selected, there is no
powerflow through the transaxle. The output shaft is
not held and is free to rotate and the engine can be
started. This position can also be selected while the
vehicle is moving, to restart the engine if that becomes
necessary.
N
When the "Reverse" position is selected, the
vehicle can be operated in a rearward direction at a
reduced gear ratio.
R
When the "Sport" position is selected, the lock
button must be pressed to shift into "S", the TCM will
select only 1st thru 5th gears automatically using a
performance-oriented shifting program.
When the Manual position is selected, shift lever in
the "S" position and moved into the right hand
selector gate, it enables the driver to select the range
of gears by tapping the selector lever towards the "-"
or "+" to cause the transaxle to downshift or upshift.
These ranges can be used for conditions where it may
be desirable to control the selection of gear ratios.
S
S - Cont'd
The "Drive" position is the normal position for
most forward gear operations. The Drive position
provides automatic upshifts and downshifts, apply
and release of the converter clutch, and maximum fuel
economy during normal operation. Drive range
allows the transaxle to operate in each of the six
forward gear ratios. Downshifts are available for safe
passing, by depressing the accelerator.
D
SHIFT QUADRANTS
Selector Lever
Steering Wheel Paddles
Selector Lever Positions

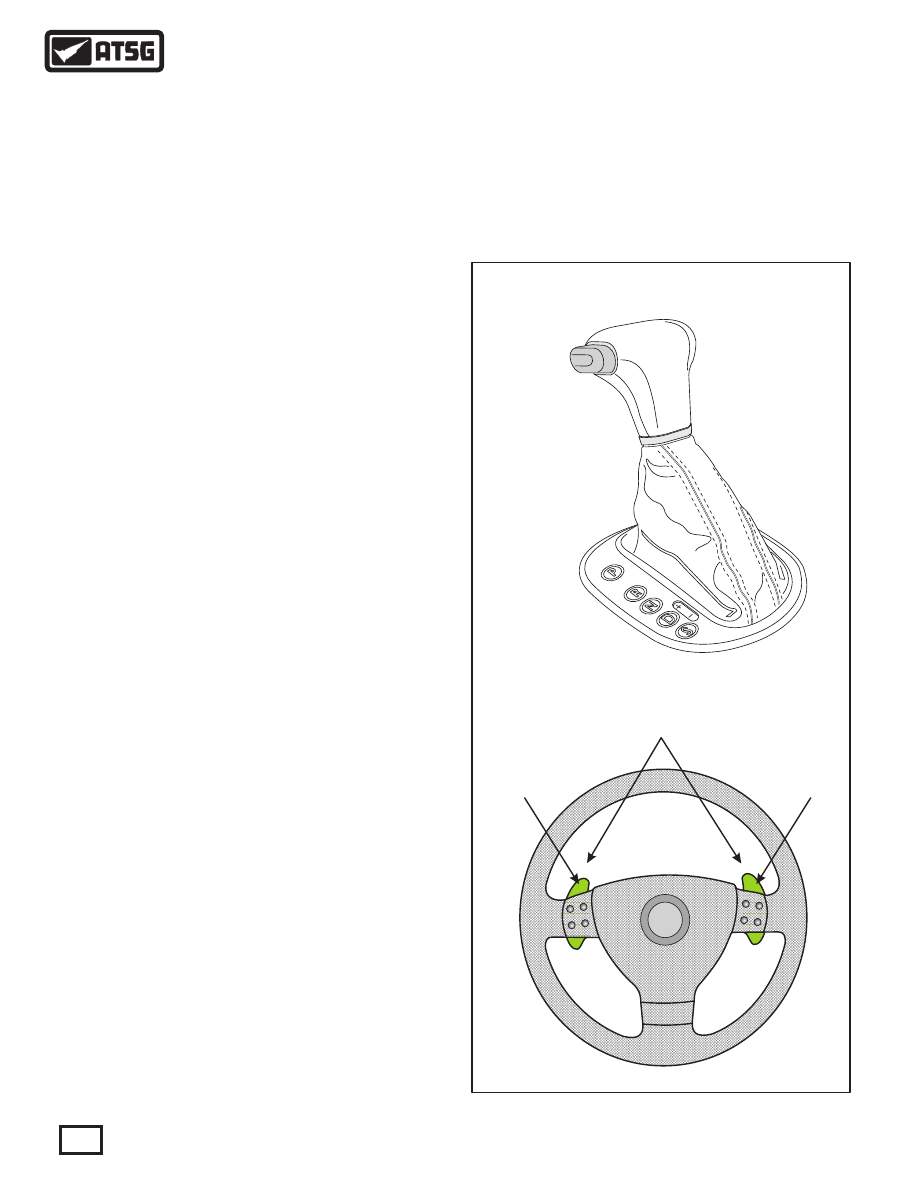

The appearance of the selector lever, as shown in
Figure 25, will vary between the different vehicle
applications. However, the operation and function
remains the same with the use of the TF-60SN.
Steering wheel paddles are available as options,as
shown in Figure 25, and they also will vary in
appearance with the different vehicle applications.
However, operation and function remains the same
with the TF-60SN.
Lock Button
Thumb Paddles
Upshift
Paddle
Downshift
Paddle
On models equipped with the steering wheel
paddles, the paddles are used to upshift and downshift
the transaxle manually, instead of the shift lever.
Figure 25
