Technical Service Information

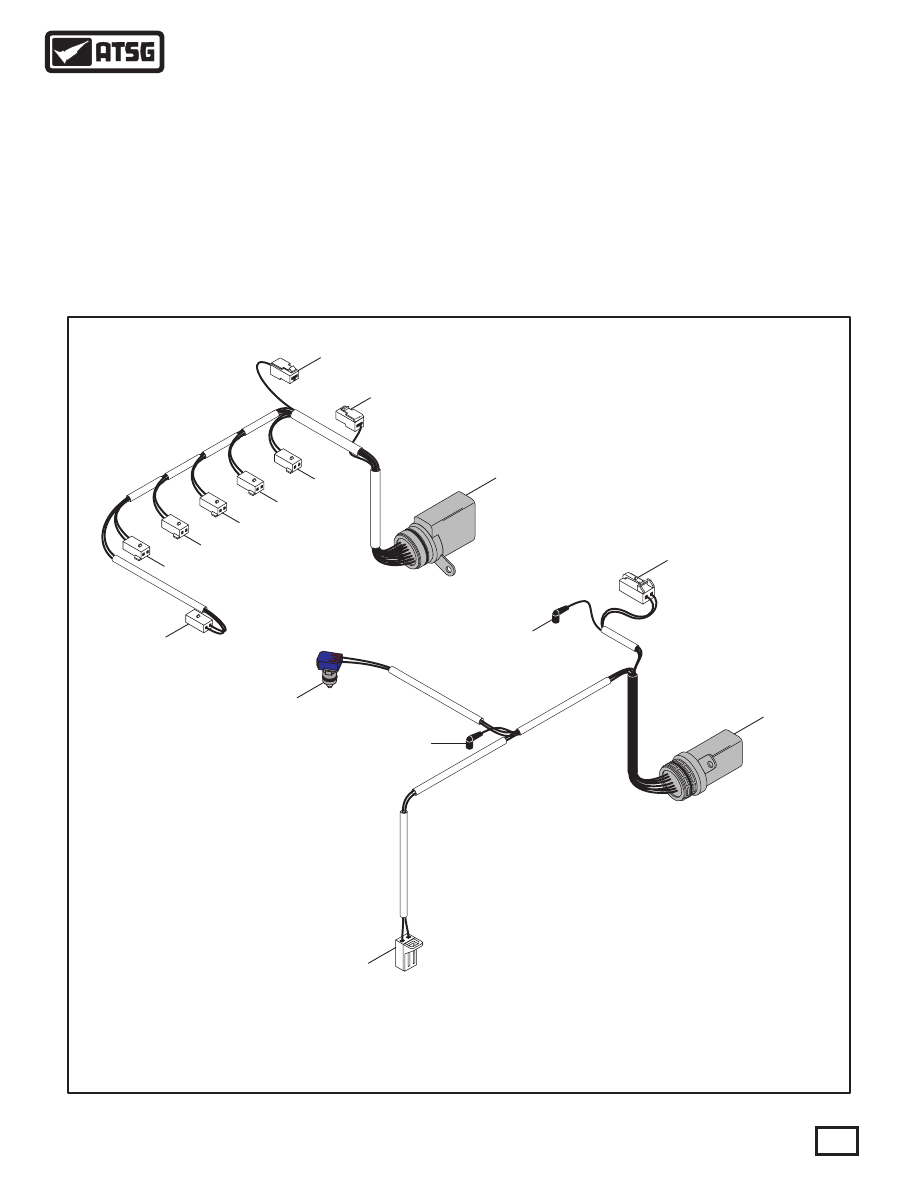

Figure 18

8-WAY AND 14-WAY PASS-THRU CASE CONNECTORS AND HARNESS ASSEMBLIES

ELECTRONIC COMPONENTS (CONT'D)

Pass-Thru Case Connectors

As stated previously, the transmission temp sensor is
an integral part of the 8-way connector and wire
harness assembly, as shown in Figure 18.

Continued on Page 16

    1 14-WAY SOLENOID CASE CONNECTOR AND HARNESS ASSEMBLY.
    2 N88 ON/OFF SOLENOID CONNECTO R (BLACK).
    3 N89 ON/OFF SOLENOID CONNECTO R (BLUE).
    4 N93 P WM SOLENOID CONNECTOR (GREEN).
    5 N90 P WM SOLENOID CONNECTOR (GREEN).
    6 N92 P WM SOLENOID CONNECTOR (GREEN).
    7 N283 P WM SOLENOID CONNECTOR (GREEN).
    8 N282 P WM SOLENOID CONNECTOR (GREEN).
    9 N91 P WM SOLENOID CONNECTOR (GREEN).
10 8-WAY SENSOR CASE CONNECTOR AND HARNESS ASSEMBLY.
11 OUTPUT SPEED SENSO R CONNECTOR (WHITE).
12 NUMBER 2 PRESSURE SWITCH CONNECTOR   (SOME MODELS).
13 NUMBER 1 PRESSURE SWITCH CONNECTOR   (SOME MODELS).
14 TRANSAXLE FLUID TEMPERATURE SENSOR.
15 INPUT SPEED SENSOR C ONNECTOR (YELLOW).

There are 2 pass-thru case connectors and internal
wire harness assemblies used on the "09D"
transmissions One is an 8-way connector that serves
all of the internal sensors and switches, and one 14-
way connector that serves all of the solenoids, as
shown in Figure 18.

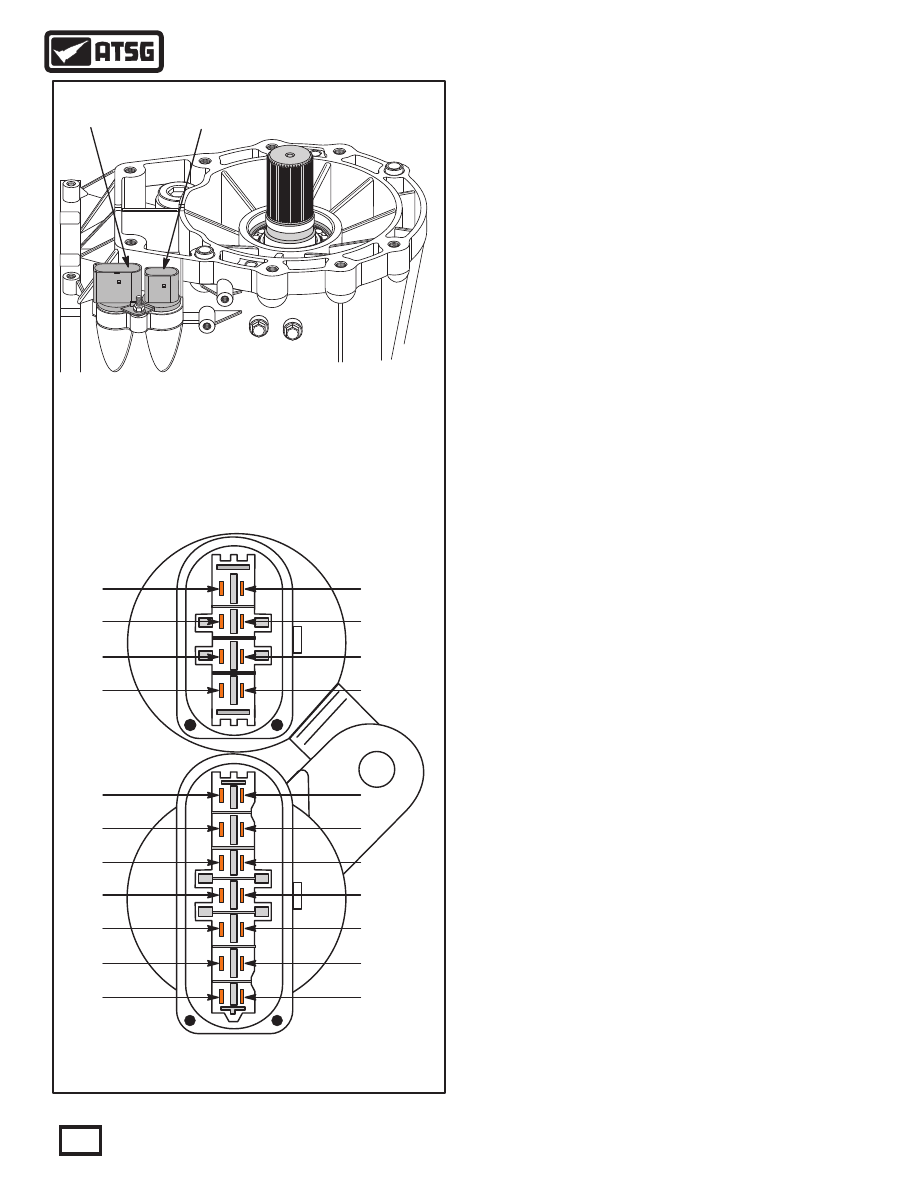

Figure 19

8-Way Case Connector

Face View Looking Into

Both Case Connectors

14-Way Case Connector

14-WAY CASE
CONNECTOR

8-WAY CASE

CONNECTOR

8-WAY CASE

CONNECTOR

Technical Service Information

ELECTRONIC COMPONENTS (CONT'D)

Pass-Thru Case Connectors (Cont'd)

   Both pass-thru case connectors are located on the
right rear of the transmission case and both are
retained with a single bolt, as shown in Figure 19.
   Refer to Figure 19 for terminal identification of the
14-way and 8-way connectors.   Resistance charts for
the internal electronic components through the case
connectors are shown in Figure 20. You can also
check the same components through the TCM
connector, which verifies the integrity of the wires all
the way to the TCM in Figure 21.

Electronic Components

Continued on Page 19

Solenoid

Number (Name)

Positive Meter Lead

Terminal No. (Wire Color)

Solenoid No. 1 (N88)

Solenoid No. 2 (N89)

Solenoid No. 3 (N90)

Solenoid No. 4 (N91)

Solenoid No. 5 (N92)

Solenoid No. 6 (N93)

Solenoid No. 9 (N282)

Solenoid No. 10 (N283)

1 (White)

2 (Black)

7 (Purple)

11 (Lt. Green)

3 (Yellow)

13 (Green)

5 (Red)

9 (White)

Negative Meter Lead

Terminal No. (Wire Color)

Case Ground

8 (Yellow)

12 (Brown)

4 (Lt Blue)

14 (Grey)

6 (Blue)

10 (Black)

Ohms

Resistance

10.0 - 16.0

4.0 - 8.0

When comparing resistance readings of On/Off solenoids, the resistance should be within .5 Ohms of one another.
When comparing resistance readings of PWM solenoids, the resistance should be within .5 Ohms of one another.

RESISTANCE CHART THROUGH 14-WAY CASE CONNECTOR

Temperature F° (C°)

-22°F (-30°C)

50°F (10°C)

77°F (25°C)

230°F (110°C)

293°F (145°C)

37K - 51K Ohms

5K - 8K Ohms

3K - 5K Ohms

230 - 265 Ohms

100 - 120 Ohms

Sensor

ID (Name)

Positive Lead

Term. No. (Color)

TFT (G93)

ISS (G182)

OSS (G195)

PS1 (G193)

PS2 (G194)

1 (Orange)

3 (White)

5 (Orange)

7 (Black)**

8 (Yellow)**

6 (Blue)

Case Ground

4 (Red)

Negative Lead

Term. No. (Color)

2 (Orange)

Ohms

Resistance

5.0M Ohms*

0 = Open

* The ISS and OSS are Hall Effect Sensors and should be checked using a scope under operating conditions. The resistance values provided in
the chart are from new sensors. Resistance checks on these type of sensors would, at best, inform you of either open or grounded circuits within
the sensor itself.

** Pressure switches are not used in all models of the 09D transmission.

RESISTANCE CHART THROUGH 8-WAY CASE CONNECTOR

Wire colors provided in these charts are "Observed Internal" colors.

Figure 20

Technical Service Information

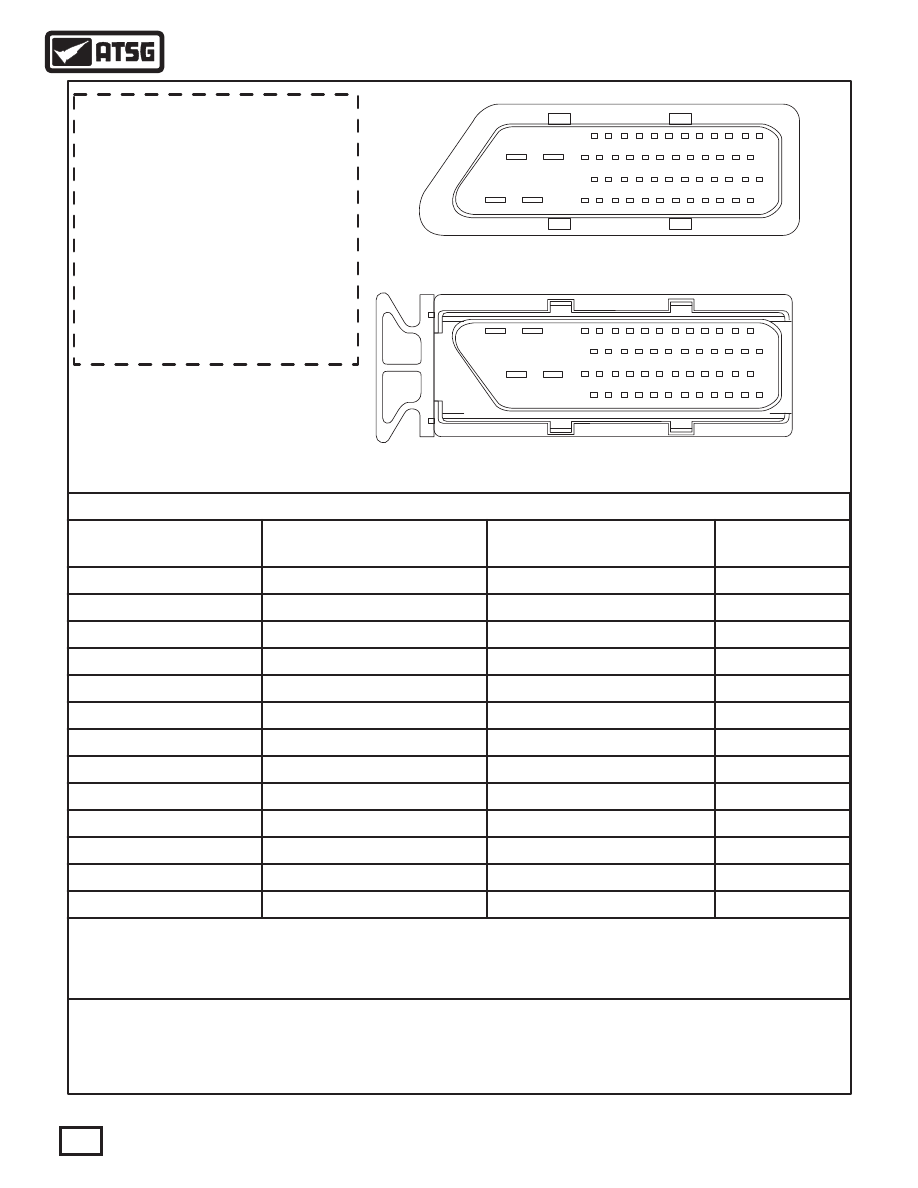

View looking into the TCM (J217)

View looking into the 52 pin TCM (J217) Connector

9 10 11 12 13 14

15 16 17 18 19 20 21 22 23 24 25 26

29 30 31 32

33 34 35 36 37 38 39 40

41 42 43 44 45 46 47 48 49 50 51 52

Solenoid

Number (Name)

Positive Meter Lead

Terminal No. (Wire Color)

Negative Meter Lead

Terminal No. (Wire Color)

Ohms

Resistance

Figure 21

RESISTANCE CHART THROUGH TCM 52-WAY CONNECTOR

Solenoid No. 1 (N88)

Solenoid No. 2 (N89)

Solenoid No. 3 (N90)

Solenoid No. 4 (N91)

Solenoid No. 5 (N92)

Solenoid No. 6 (N93)

Solenoid No. 9 (N282)

Solenoid No. 10 (N283)

TFT (G93)

ISS (G182)

OSS (G195)

PS-1 (G193)

PS-2 (G194)

41 (Violet/Blue)

15 (Violet/Green)

30 (Yellow/Gray)

44 (Yellow/Black)

8 (Blue/Black)

39 (Black)

50 (White)

43 (Gray/Black)

6 (Blue/White)

17 (Green/Blue)

32 (Violet)

18 (Violet/Gray)

42 (Yellow/Violet)

31 (Blue/Violet)

16 (Yellow/Green)

4 (Green)

45 (Blue/Brown)

51 (Green)

38 (Black/Brown)

24 (Green/Blue)

25 (Blue/Green)

5 (Brown)

1 or 2 (Brown)

10 - 16

4.0-8.0

0 = Open

5.0M

See Figure 20

External Harness wire colors provided in the chart above may vary depending on the year, make and
model of the vehicle.

AUDI Q7
Under Right Front Seat

CAYENNE
Under Right Front Seat

TOUAREG
Under Right Front Seat

TCM LOCATIONS

Technical Service Information
