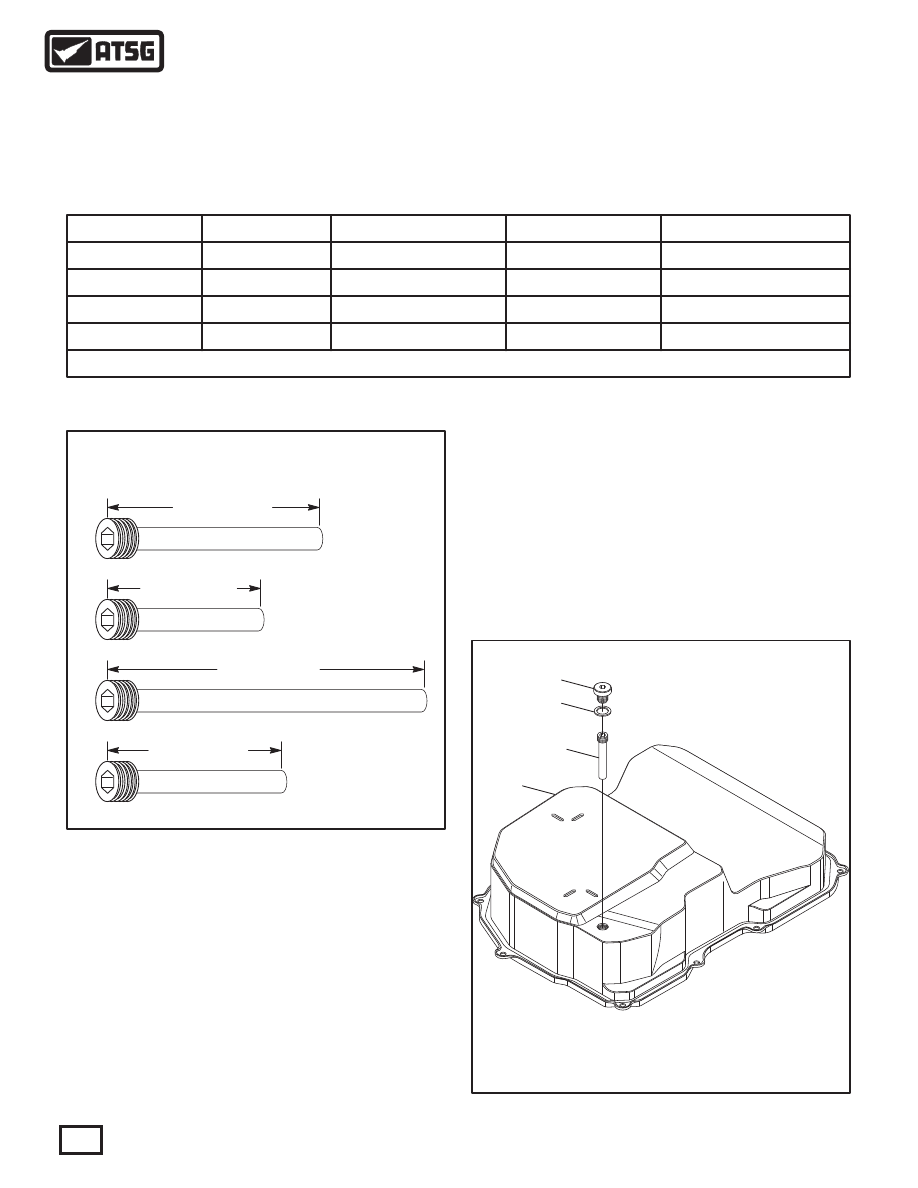

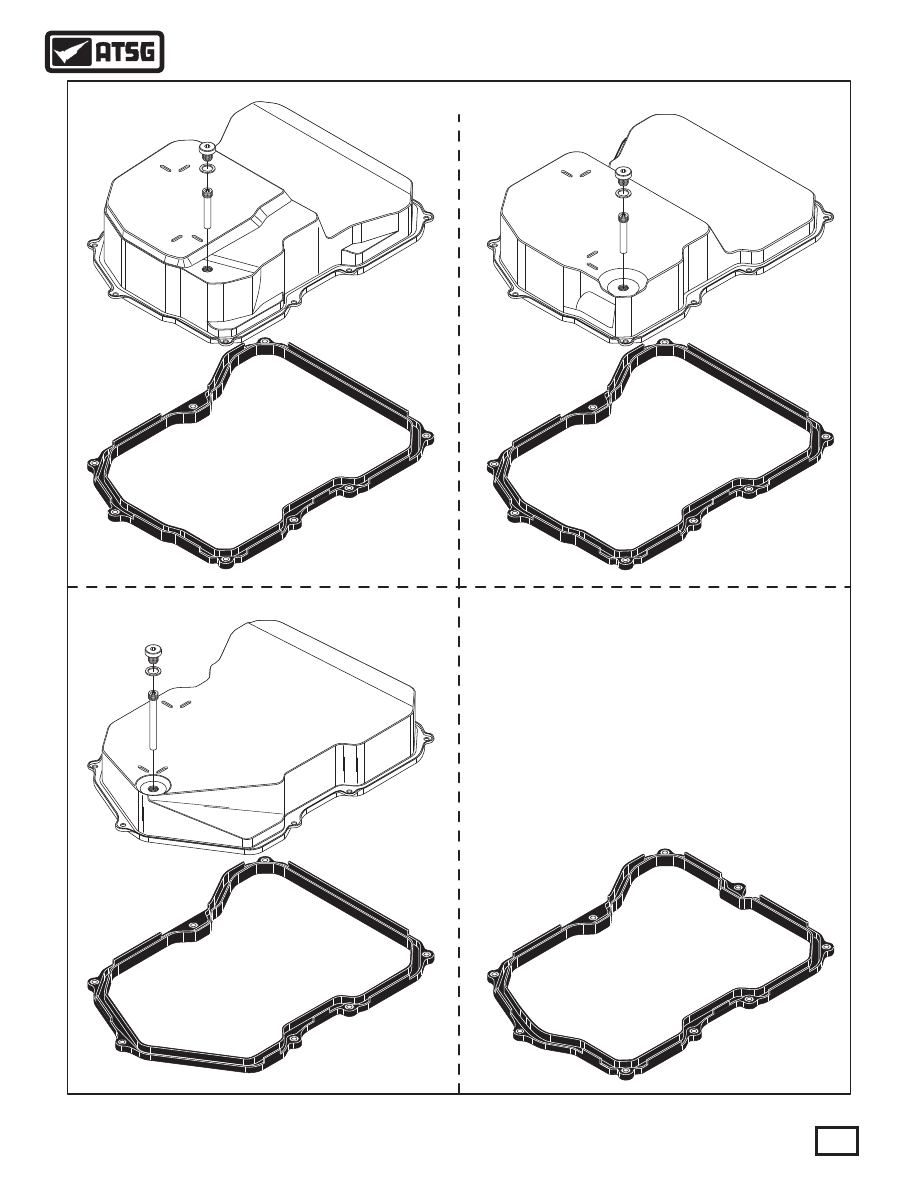

11 BOTTOM OIL PAN (MODEL DEPENDANT).
12 OIL PAN "STAND-PIPE" (MODEL DEPENDANT).
13 OIL LEVEL CHECK PLUG SEALING WASHER.
14 OIL LEVEL CHECK PLUG.
Figure 46
Figure 44
Figure 45
CAUTION:
There are 3 different lengths of the "stand-pipe" for VW, depending on vehicle and/or model. If the wrong
oil pan or "stand-pipe are installed, the result will be a transaxle that is slipping, or a transaxle that is over-
filled. Either way, it is a concern. At the time of this printing we have seen only 1 "stand-pipe" for the BMW
Mini-Cooper with the 09G. The various lengths, colors and part numbers that were available at time of
printing, are listed in Figure 44, and "will not" interchange.
Note: If the "stand-pipe" is removed, it must be
installed by hand tightening only with the allen
socket and ensure it is completely seated. If not, the
fluid level will not be correct and the bottom of the
check plug may seat against the stand-pipe instead
of seating on check plug sealing washer.
11
12
13
14
38
Technical Service Information
Component
Color
Overall Length
Part Number
Application
VW 09G
VW 09G
VW 09K
Mini-Cooper
09G-321-361
09G-321-361-D
49.6 mm (1.953")
35.7 mm (1.408")
41.0 mm (1.615")
Dark Brown
Red
Blue
White
Stand-Pipe
Stand-Pipe
Stand-Pipe
Stand-Pipe
49.6 MM (1.953")
41.0 MM (1.615")
35.7 MM (1.408")
??.? MM (?.???")
Blue
Red
Dk Brown
White
Many Thanks to Meenan Transmission for
assisting in ID of the various stand-pipes.
DRAWN ACTUAL SIZE
